C600-7M/9M Solar CCTV Trailer
A solar CCTV trailer with PTZ and fixed-camera coverage in the reference configuration.
PRODUCT OVERVIEW
Build the discussion around the site.
C600-7M/9M Solar CCTV Trailer is listed in the supplied STG 2026 product catalogue. Use the reference configuration below to begin a site-specific discussion; final equipment selection, performance and availability require confirmation with STG.
Planning considerations
- Plan fixed and PTZ camera positions around the required field of view.
- Confirm the network, recording and remote-access requirements.
- Size the final energy configuration around the camera load and local solar resource.
Application planning
- Temporary compound surveillance
- Remote asset visibility
- Relocatable camera coverage
Reference specifications
- Solar array
- 3 × 480 W (1,440 W)
- Battery energy
- 10,240 Wh (LFP)
- Reference cameras
- 1 PTZ + 3 bullet cameras
- Camera resolution
- 5 megapixels
- Mast options
- 7 m / 9 m
Reference values from the supplied 2026 catalogue, not a project guarantee. Confirm final configuration, performance and availability with STG.
Source: STG Product Catalogue 2026, page 34 (opens in a new tab).
Technical reference & downloads

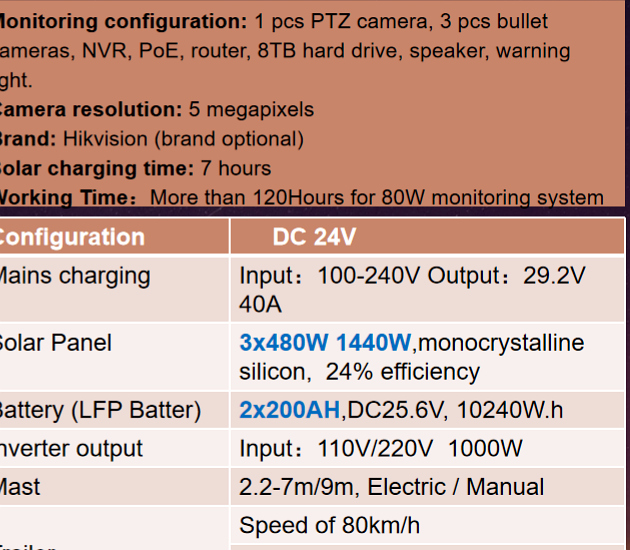

The original catalogue table is included for reference. Ask STG to clarify any incomplete or inconsistent source values.
View the original technical table
